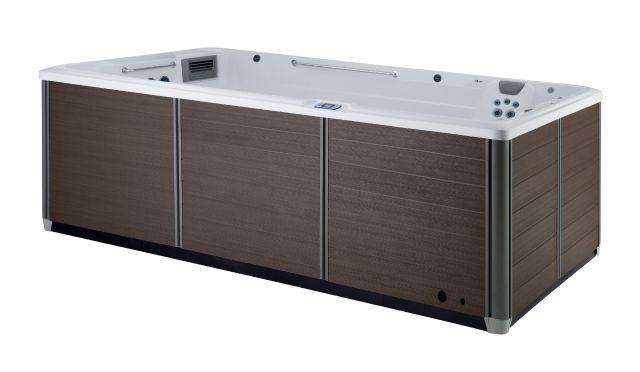

RecSport® R500 Recreation Systems
More to love.
Enjoying all the physical and non-physical benefits of water is what RecSport® Recreation Systems are all about. With our most expansive recreation space yet, the unique design of the R500 maximizes the interior space to provide a wide-open space, comfortable spa seating and a 30-inch deep reef area for kids to play. There’s more to love with the R500.
|Dimensions||15′ L X 50″ H X 89″ W|
|Water Capacity||1,785 Gallons|
|Weight||2,055 lbs. (Dry) / 18,690 lbs. (Filled*)|
|Hydromassage Jets – 27||1 Large Jet, 2 Rotary Jets, 2 Directional Jets, 22 Mini Jets|
|Swim Technology||3 Swim Jets – Max 215 Gallons Per Minute|
2.5 HP XP3 Continuous Duty
5.2 HP Breakdown Torque
|Lighting System||24 Multi-Color LED Points of Light|
|Water Feature||1 Illuminated Waterfall|
|Control System||LCD Control Panel; 230v/30amp, 60 Hz, Field Adjustable 230v/60amp|
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
|Ozone System||CD Ozone|
|Effective Filtration Area||100 sq. ft.|
|Substructure||Wood Frame and ABS Base Pan|
|Energy Efficiency||EPS Foam + Reflective Film; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law|
|Stainless Steel Grab Rails||3 Stainless Steel Rails|
|Music Option||8 Speakers + Subwoofer, Bluetooth®-Enabled|
|Exercise Equipment Options||Swim Tether, Resistance Bands, Aqua Bike|
|Vinyl Cover & Lifter Options||Watkins Covers & Lifters, VacuSeal® Cover System, or CoverCradle®/ProLift® III|
|Additional Options||Floor Mirror, Gecko® In.Touch 2 Wi-Fi & Mobile App, CoolZone™ Cooling System, Signature Fitness System Steps|
|Footnote||*Includes water and 10 adults weighing 175 lbs. each|
The swim jets in RecSport® Recreation Systems provide the ideal environment for aquatic recreation at an affordable price. Three linear swim jets provide a steady stream of water that is more powerful than the average jet. The swim jets use a Venturi effect, not air, to draw-in or entrain more water, effectively multiplying the volume of water. This design feature results in a water stream with less turbulence than other swim spas on the market.
The seamless acrylic shell was specifically designed to maximize the space for exercise, play and relaxation with a unique center-facing spa seating configuration and large, 60” W X 78” L recreation space near the swim jets. Available in Ice Gray and Alpine White, it is built for durability and lasting beauty.
Spa Seating with Hydromassage Jets
The spa area of the R200 includes two bucketed hydromassage seats for back and foot massage and a 30-inch depth reef area located between the two seats; perfect for kids to play. Located next to the two bucket seats are the entry/exit steps on each side that also act as “cool down seats.” Additionally, a bench style hydromassage seat is located next to the swim jets giving this unit comfortable seating for up to five and room for many more!
The stunning lighting of RecSport Recreation Systems delivers maximum design impact. Its 20 multi-color LED points of light provide ample brilliance and beauty. The water feature is also backlit for added elegance.
Solid Wood Frame & ABS Base Pan
RecSport Recreation Systems are built on a sturdy wood frame coupled with an ABS base pan that is built to last.
Water Management System
RecSport Recreation Systems use eco-friendly CD Ozone to neutralize contaminants. Water is circulated through the hydromassage pump on low speed for regular water circulation and optimal water quality.
The Tri-Thermic™ Barrier System, a standard feature, provides three layers of insulation to conserve heat, enhance energy efficiency, and lower operating costs. The system’s three layers include a three-quarter inch, two-pound density EPS (Expanded Polystyrene) foam and reflective film attached to the inside of the cabinet, combined with a two-inch thick heat blanket made of high-quality recycled textile fibers and foil film, attached on the inside of the steel frame. Together these materials provide maximum thermal performance and achieve certification to California Energy Commission (CEC) and APSP 14 National Standards.
RecSport Recreation Systems feature an LCD control panel that makes it easy to navigate component controls. Functions include on/off, water temperature and water care management, as well as control of the interior lighting and hydromassage jets.
By installing the optional plug-and-play Gecko® In.Touch Wi-Fi and Mobile App, you’ll gain full control of the system’s temperature, lights and jets from any Wi-Fi-enabled tablet or mobile device.
Anchors and Handrails for Aquatic Fitness Accessories
Every Fitness System is equipped with built-in anchors to attach fitness accessories including an optional swim tether and resistance bands. The convenient and sturdy handrails are also great for support for your resistance-training workout.
RecSport Recreation Systems
See yourself swim in place and refine your form for improved performance with the optional 24” x 51” stainless steel mirror. Placed on the floor of any Fitness or Exercise System, its weight distribution ensures that the mirror stays securely in place.

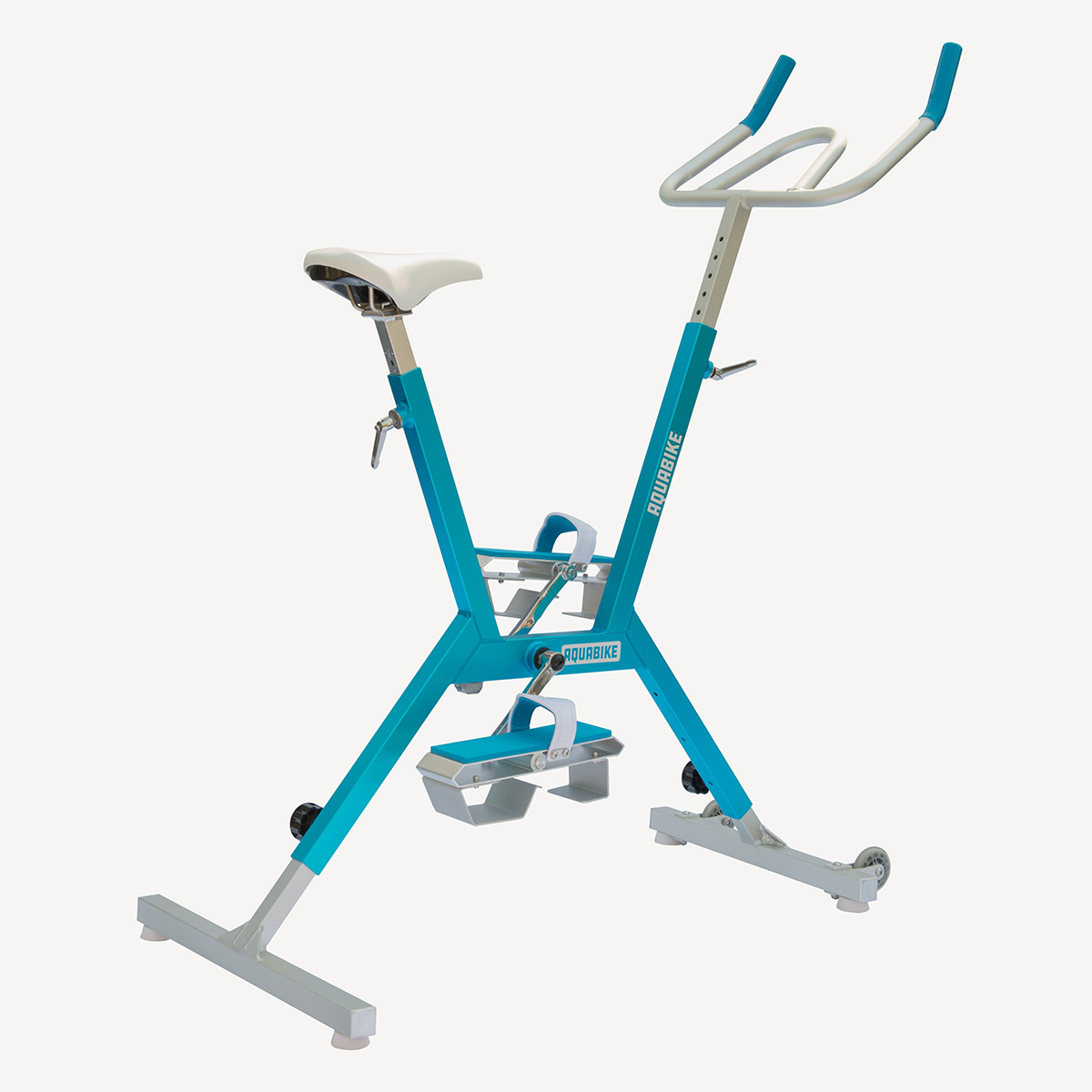

Get an effective workout without strain on your muscles and joints with this lightweight, yet stable, stationary Aqua Bike. Weighing just 21 lbs., the Aqua Bike is ideal for low to medium-intensity workouts. Position the Aqua Bike in front of the swim current for a more challenging ride.
Add more options to your workout with resistance bands. Simply attach the bands to the built-in anchor points on your Endless Pools® Fitness System for a variety of strength-building exercises. Set includes 3 pairs of color-coded resistance bands (10, 15 and 20 lbs.), with comfort-grip rubber handles. Suitable for all levels.
All models come equipped with an anchor for attaching our optional Swim Tether. For beginning swimmers or for anyone looking to improve his or her swimming form, it provides added stability and assistance in maintaining your body position in the current.
A real money-saver, the Watkins bi-fold cover helps maintain heat and reduce evaporation. It can be used on its own or with the Watkins Lifter System. The Watkins Lifter System lets you install the cover vertically, which is also a space saver.

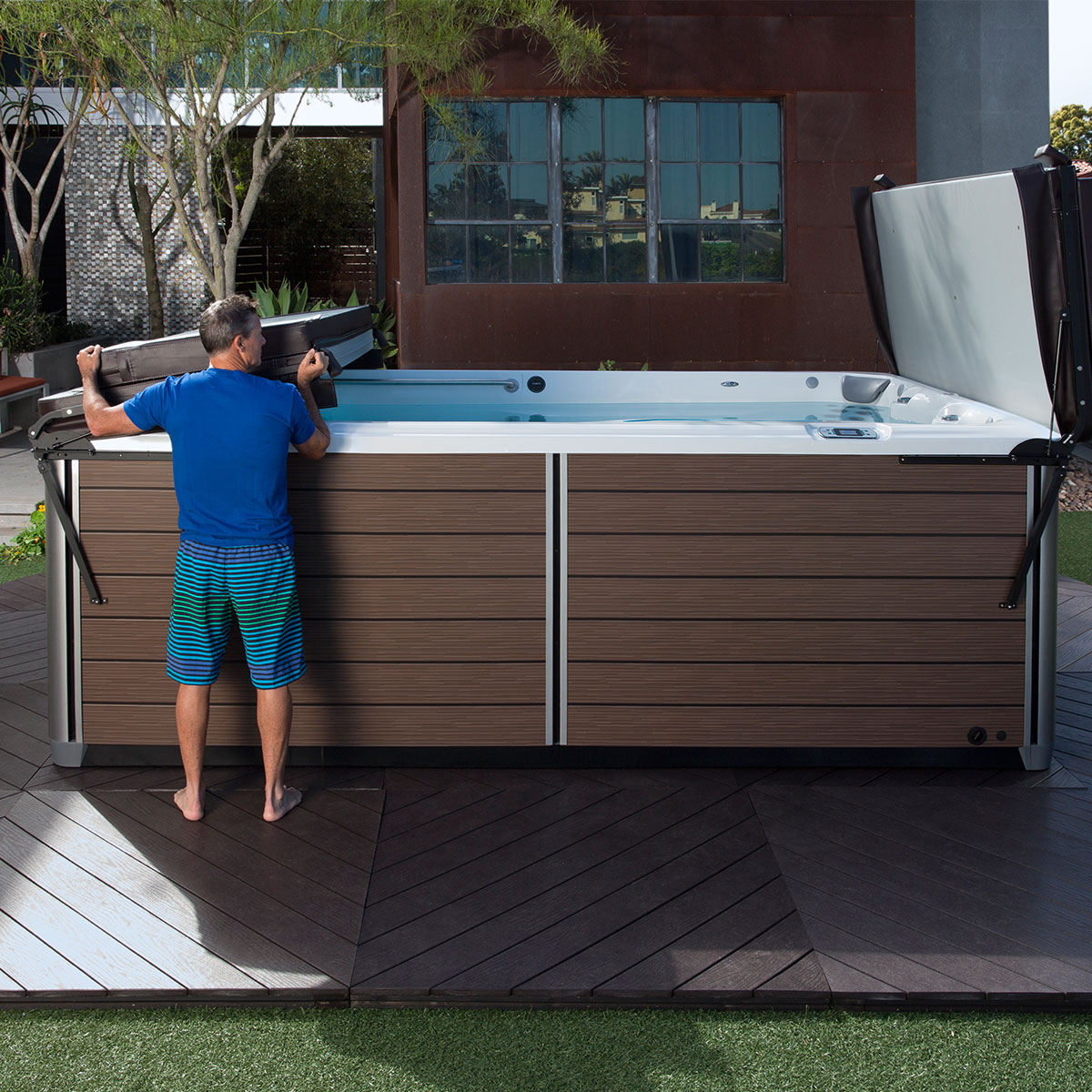

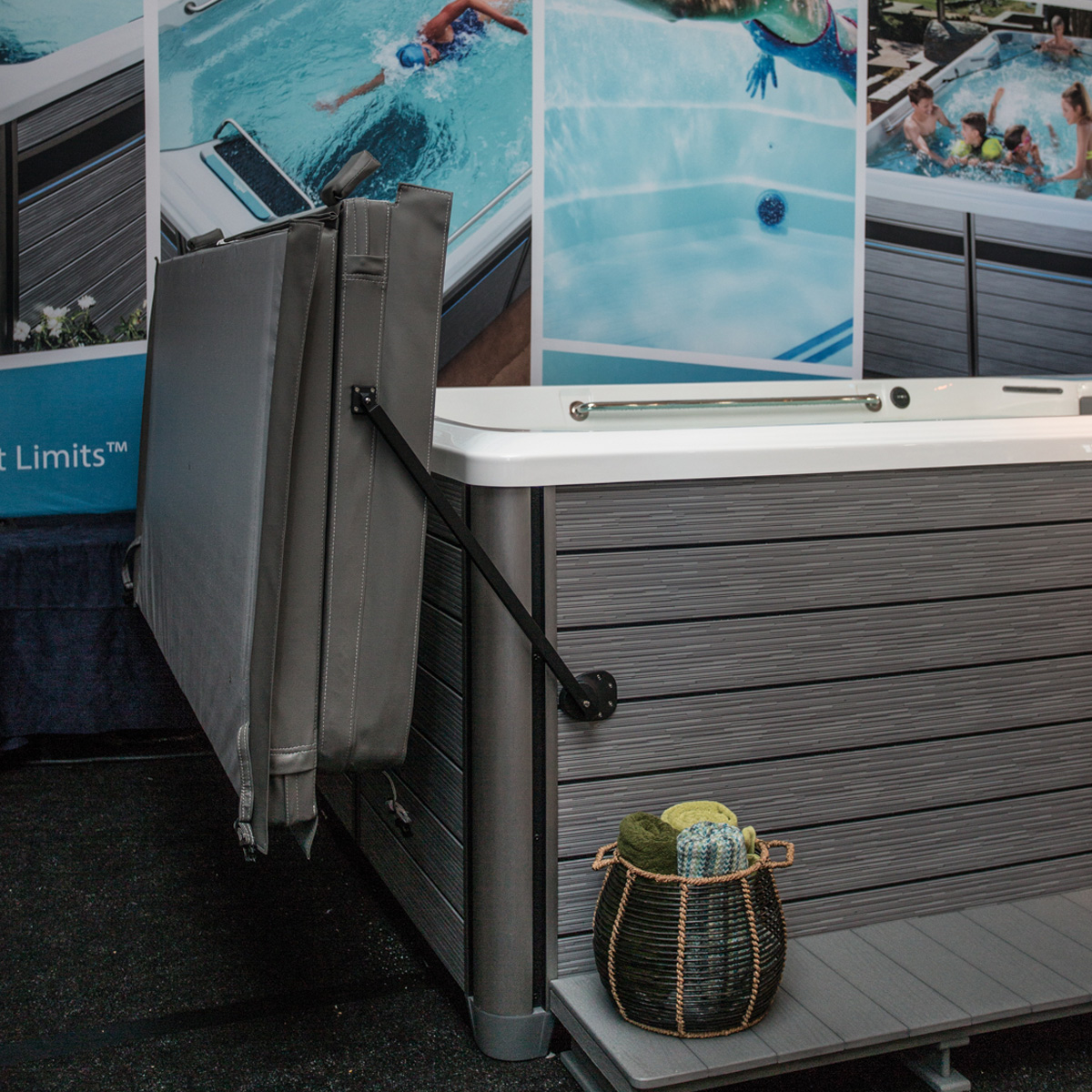

This cover lifter’s unique design uses a hydraulic hinge to simplify opening and closing the Fitness System’s swim side cover, in an ultra-smooth gliding action. For those looking for an easy lift assist and have the extra space, the CoverCradle is an excellent option. The CoverCradle can be installed on the swim side only.

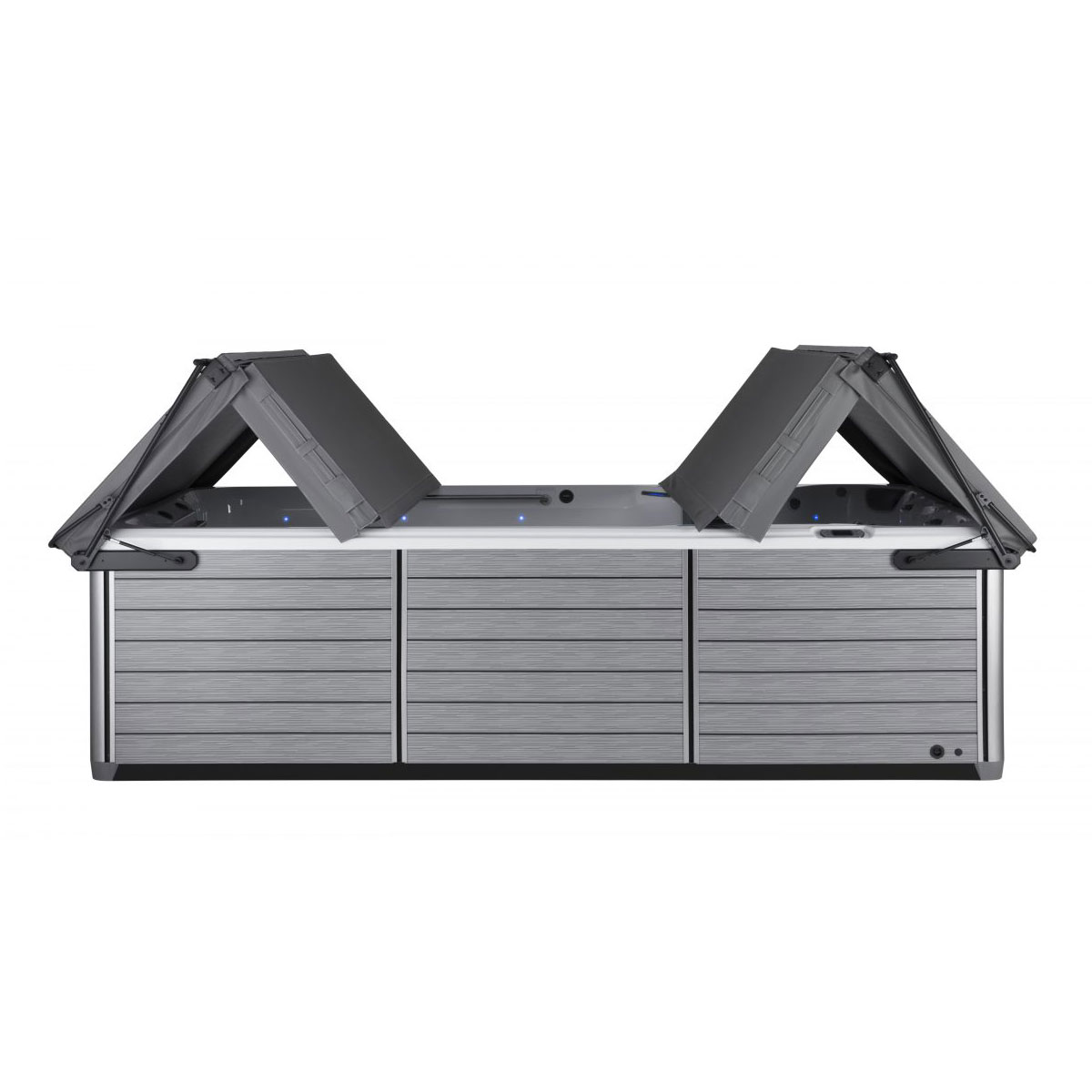

The VacuSeal Lifting System’s unique design ensures a tight seal between covers, which prevents heat loss and evaporation and optimizes efficiencies. It uses a patented “Reverse Pneumatic Technology” which applies downward pressure on the cover to vacuum seal the two covers together, eliminating the center gap, commonly found with traditional covers. Also, this technology lends itself to easier operation of the cover system especially by a single user.

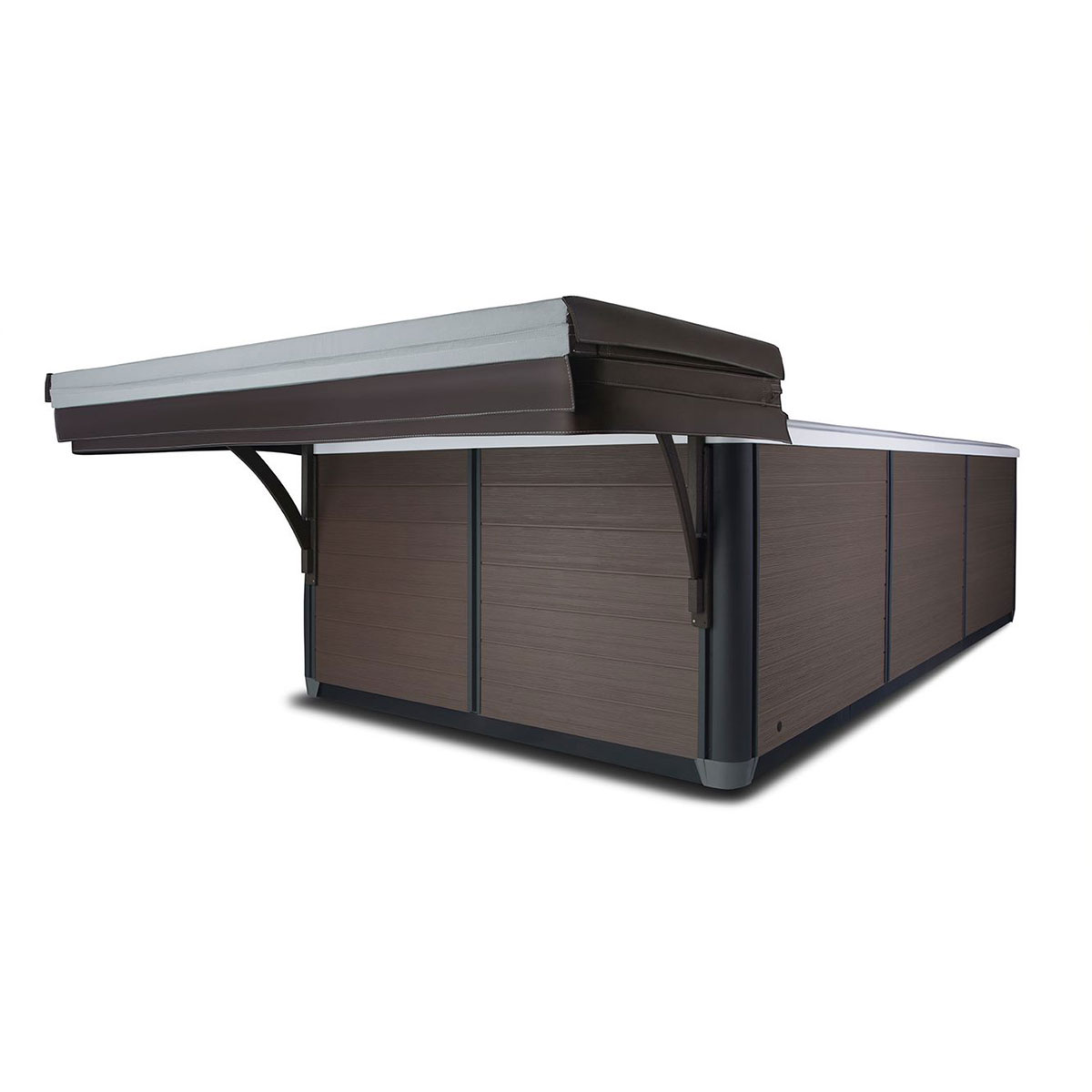

The Easy Slider gives you another method of removing Bi-fold covers. By simply attaching the “arms” to the cabinet corners, the Easy Slider eliminates the need for traditional lifters and allows customers to remove the covers without needing to lift the weight of the cover. As an added bonus, when covers are in the open position, they do not obstruct your view.

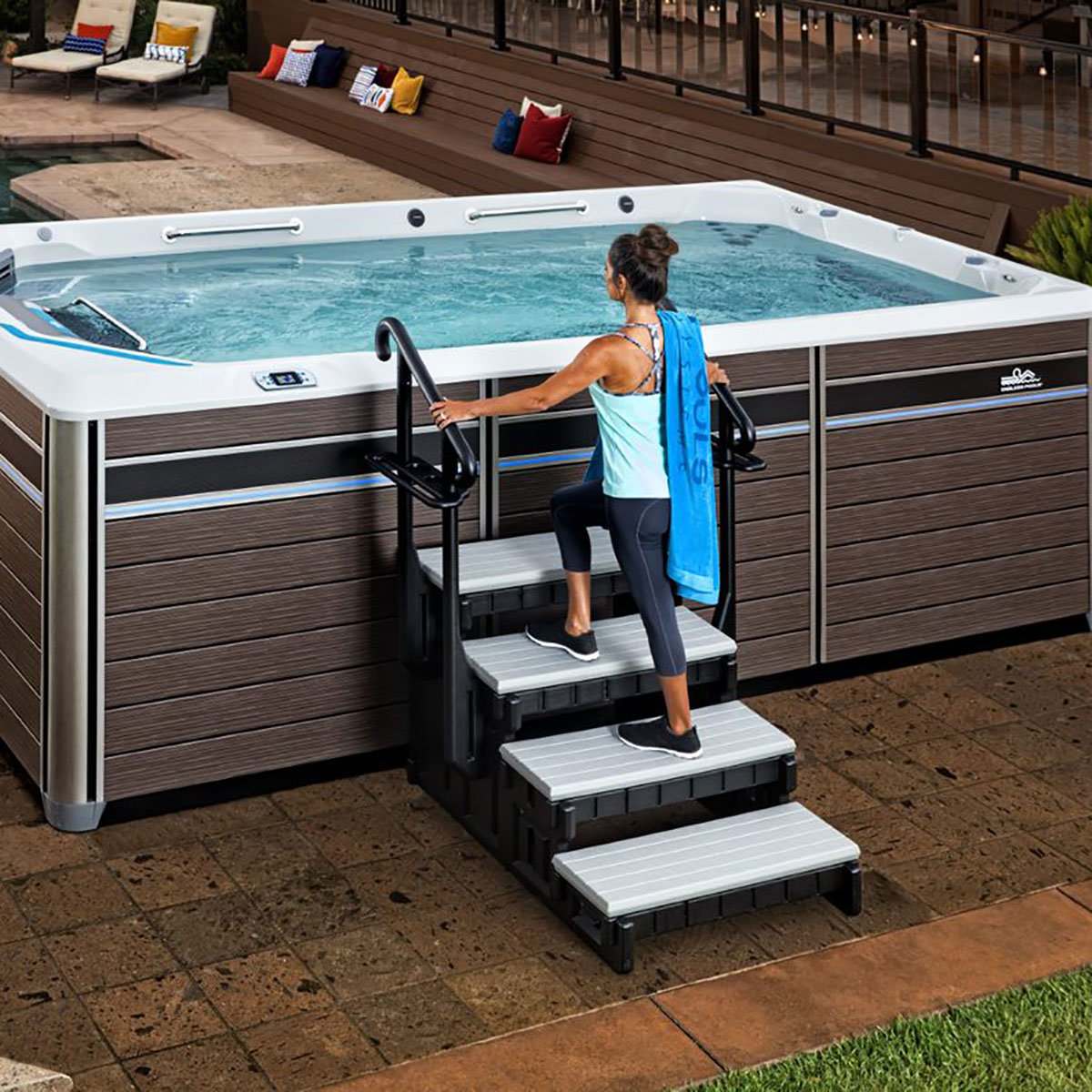

These lightweight steps allow for easy entry into any Fitness System. The dual handrails with a drink holder/towel bar and sturdy construction make this an option you won’t want to pass up.

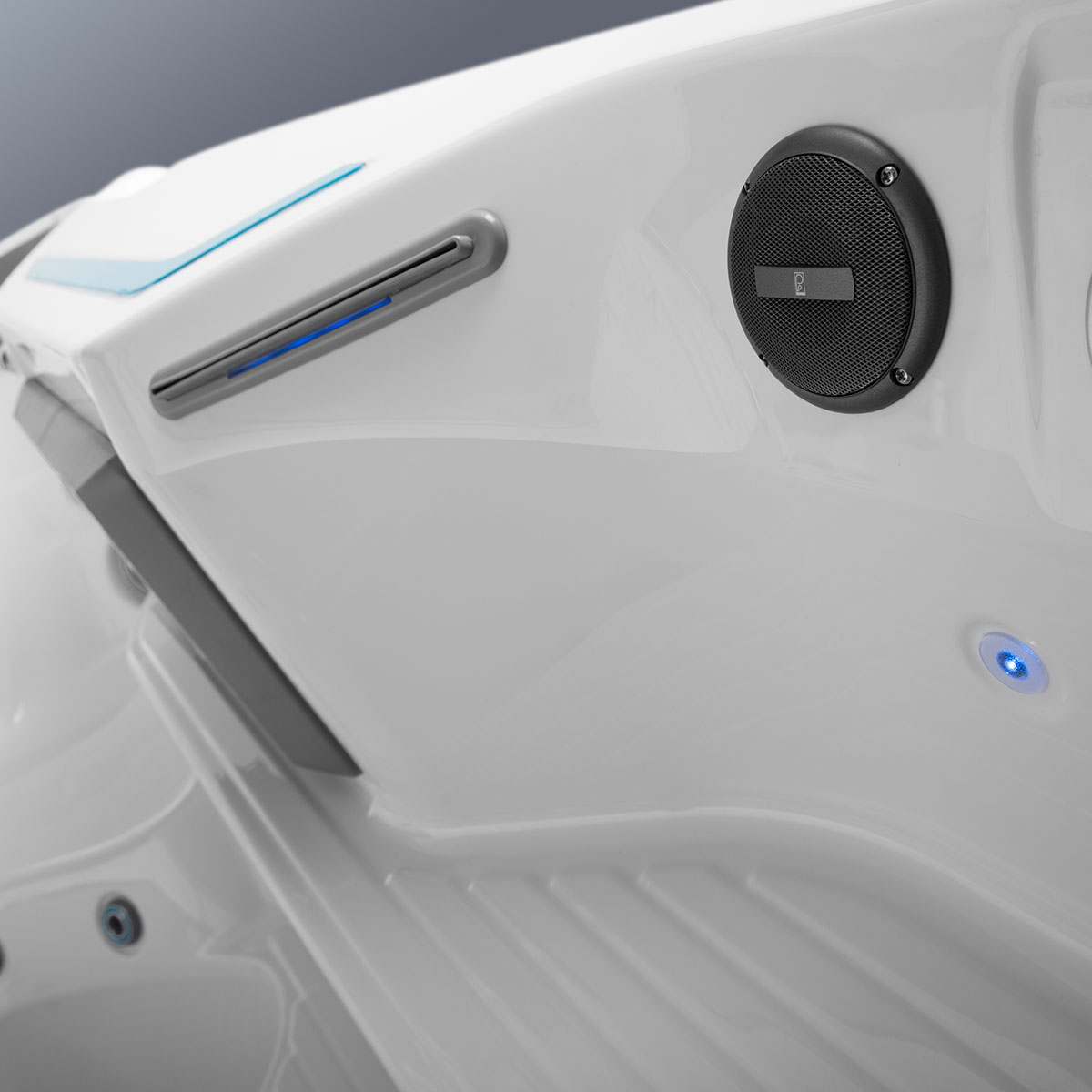

For exercise or backyard enjoyment, nothing sets the mood like our optional, integrated 8-speaker system and subwoofer. It’s easy to set up: simply pair any Bluetooth-enabled device to the system through the control panel to listen to your favorite music anytime.

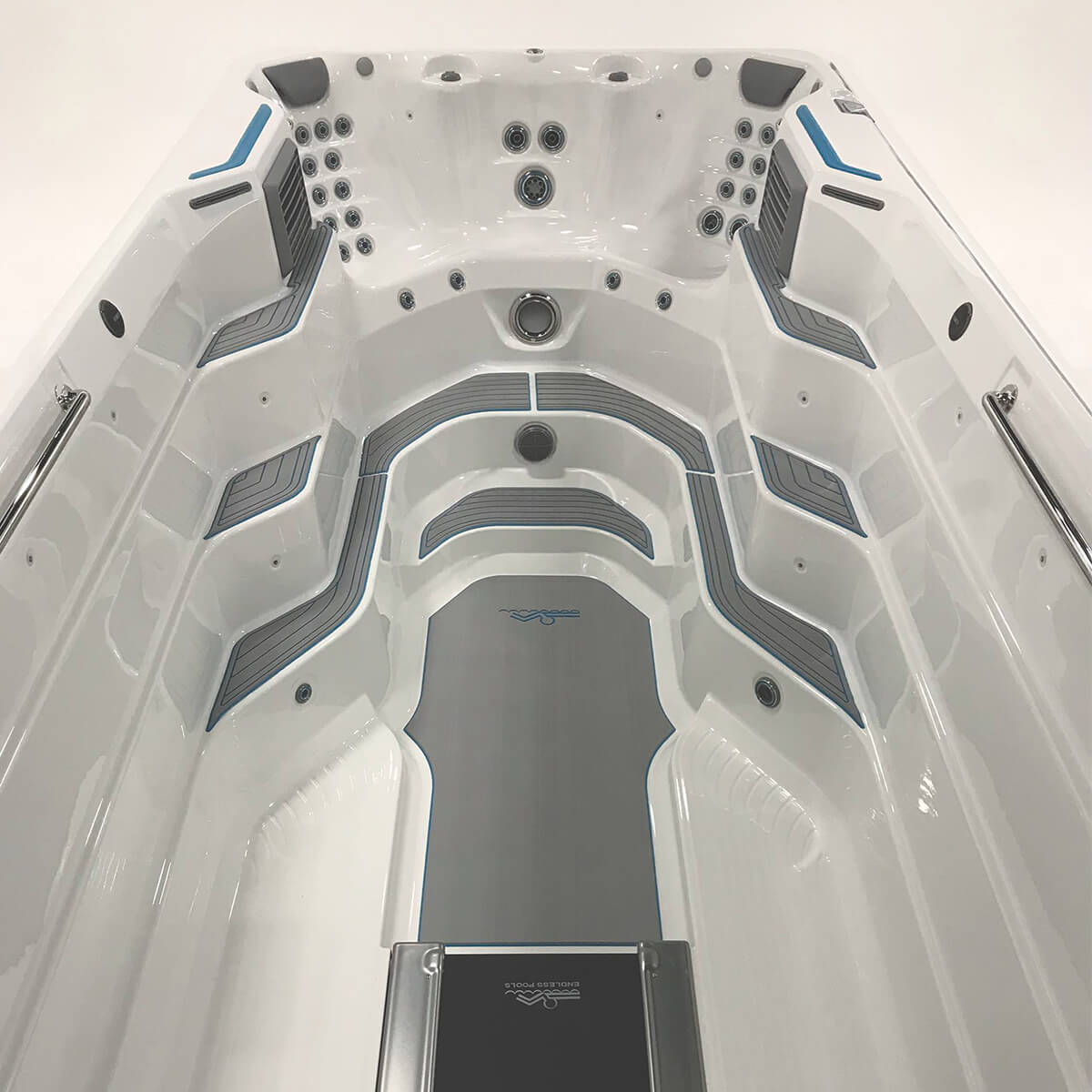

SwimDek® Surface Kits are an excellent option for exercise and play! Its patented, nonabsorbent material provides an exceptional tractions surface and added comfort. SwimDek is proven to withstand outdoor aquatic environments and remain beautiful and functional over time. Floor and Step Kits are sold separately.
Ideal for warm climate areas and for use during summer months, when cooler water temperatures are preferred, CoolZone works with the Fitness System heater to efficiently cool or heat the water.
